Technical Specifications Overview
The Remora3 is a rugged, battery-powered GPS device equipped with Bluetooth® 5.2 and optimized for global asset tracking. Its IP68 and IK07-rated housing, coupled with “Second-by-Second” tracking for real-time monitoring, makes it one of the longest-lasting battery-powered tracking solutions on the market. With user-replaceable D-cell batteries, it’s suited for extreme temperatures and challenging environments.
Core Features:
- Tamper Detection: Magnetic tamper switch provides instant alerts if the device is removed.
- Battery Monitoring: Battery meter with “Battery Low” and “Battery Critical” alerts.
- Rugged Design: IP68 and IK07-rated, waterproof and impact-resistant housing.
- Bluetooth® 5.2 Gateway: Supports tracking of nearby Bluetooth tags and sensors.
- Adaptive Tracking: Conserves energy by entering sleep mode when stationary and increasing update rates when in motion.
- Extended Battery Life: Up to 20 years on once-daily updates or 10 years on movement-based tracking.
Technical Specifications:
Connectivity
- Cellular Module: Nordic nRF9160 modem supporting LTE-M and NB-IoT bands for global coverage.
- Supported LTE Bands: LTE-M and NB-IoT bands for comprehensive roaming and connectivity.
- SIM: Internal Nano 4FF SIM.
Power
- Voltage: Operates on 5 – 16 V DC input.

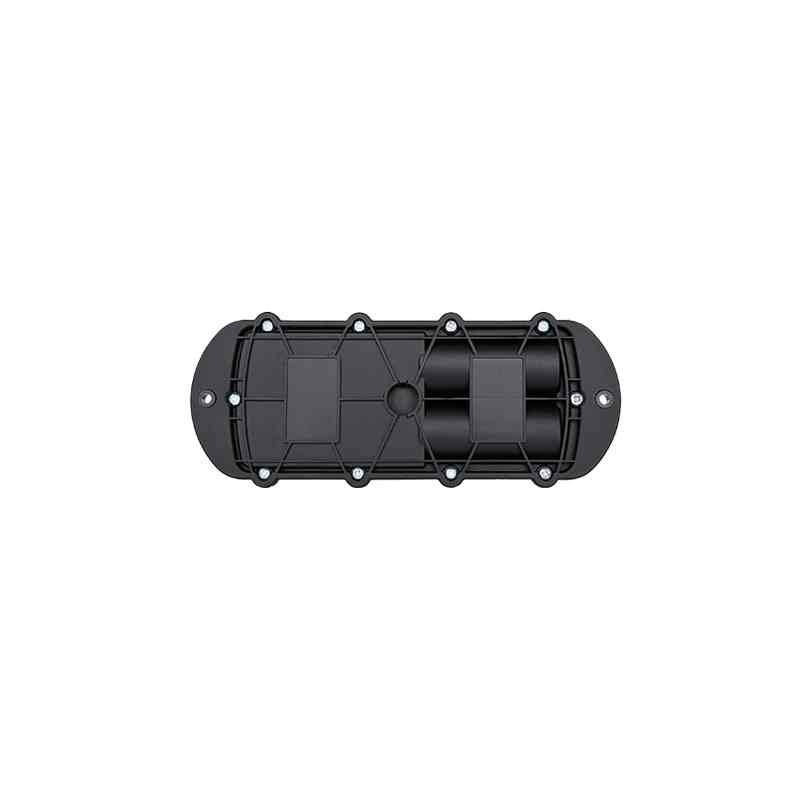

- Battery Type: User-replaceable 2 x D-cell Lithium Thionyl Chloride (LTC) for long-term, extreme-temperature operation.
Location
- GNSS Module: SONY CXD5612 supporting GPS, GLONASS, Galileo, QZSS, BeiDou.
- Tracking Sensitivity: -149 dBm (cold start), -163 dBm (hot start) for accurate positioning.
- Cell Tower Fallback: Provides positioning when GPS is unavailable.
Battery
- Life Estimates:
- Daily updates: Up to 20 years
- Movement-based updates: Up to 10 years
- Hourly updates: Up to 10 years
- Monitoring: Battery meter alerts for “Battery Low” and “Battery Critical” levels.
Device Design
- Dimensions: 222 x 91 x 41 mm (8.74 x 3.58 x 1.61 inches), 430g.
- Housing: Non-branded, IP68 and IK07-rated for dust, impact, and submersion resistance.
- Installation: Multiple mounting options with provided stainless steel screws.
Additional Features
- 3-Axis Accelerometer: Detects movement, impact, and orientation changes.
- Temperature Monitoring: Reports internal temperature to estimate ambient conditions.
- Flash Memory: Holds over 20 days of 30-second logging for off-network tracking.
Advanced Tracking Functions
- Second-by-Second Tracking: Provides real-time tracking for detailed monitoring of speeding, run hours, and odometer tracking.
- Geofencing: Configurable alerts and onboard geofencing with up to 500 geofences.
- Run Hour Monitoring: Tracks operational hours to optimize asset utilization.
- Impact Detection: User-defined alerts for excessive G-forces.
- Theft Recovery: Switch to Recovery Mode to activate real-time tracking for asset retrieval.
Security and Management
- Encryption: AES-256 encryption ensures secure data transmission.
- Device Management: Full remote management, configuration, and monitoring through a cloud-based platform.
- Third-Party Integration: TCP Direct or HTTPS Webhook support.
